This listing is for one Thermo Scientific RadEye PRD4 Personal Radiation Detector with current independent third party calibration.
This is the RadEye PRD4, a late model PRD4 series instrument. It is a compact gamma, X-ray, and neutron capable personal radiation detector designed for high sensitivity source detection, count rate monitoring, dose rate measurement, accumulated dose tracking, neutron indication, and cosmic ray monitoring functions.
This unit is currently configured in R based units, but it can be switched to Sv based units upon request before shipment.
Calibration
This instrument was professionally calibrated by an independent third party radiation measuring instrument calibration provider.
The calibration provider specializes in radiation detection and measuring equipment calibration and is licensed by the state for this type of work.

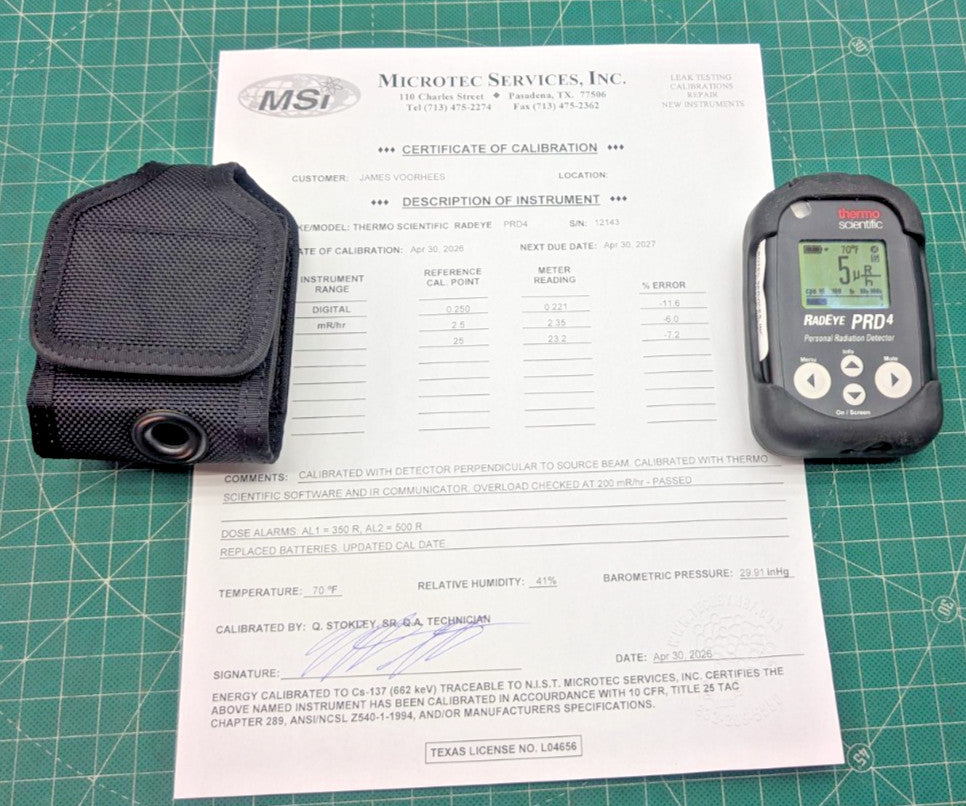

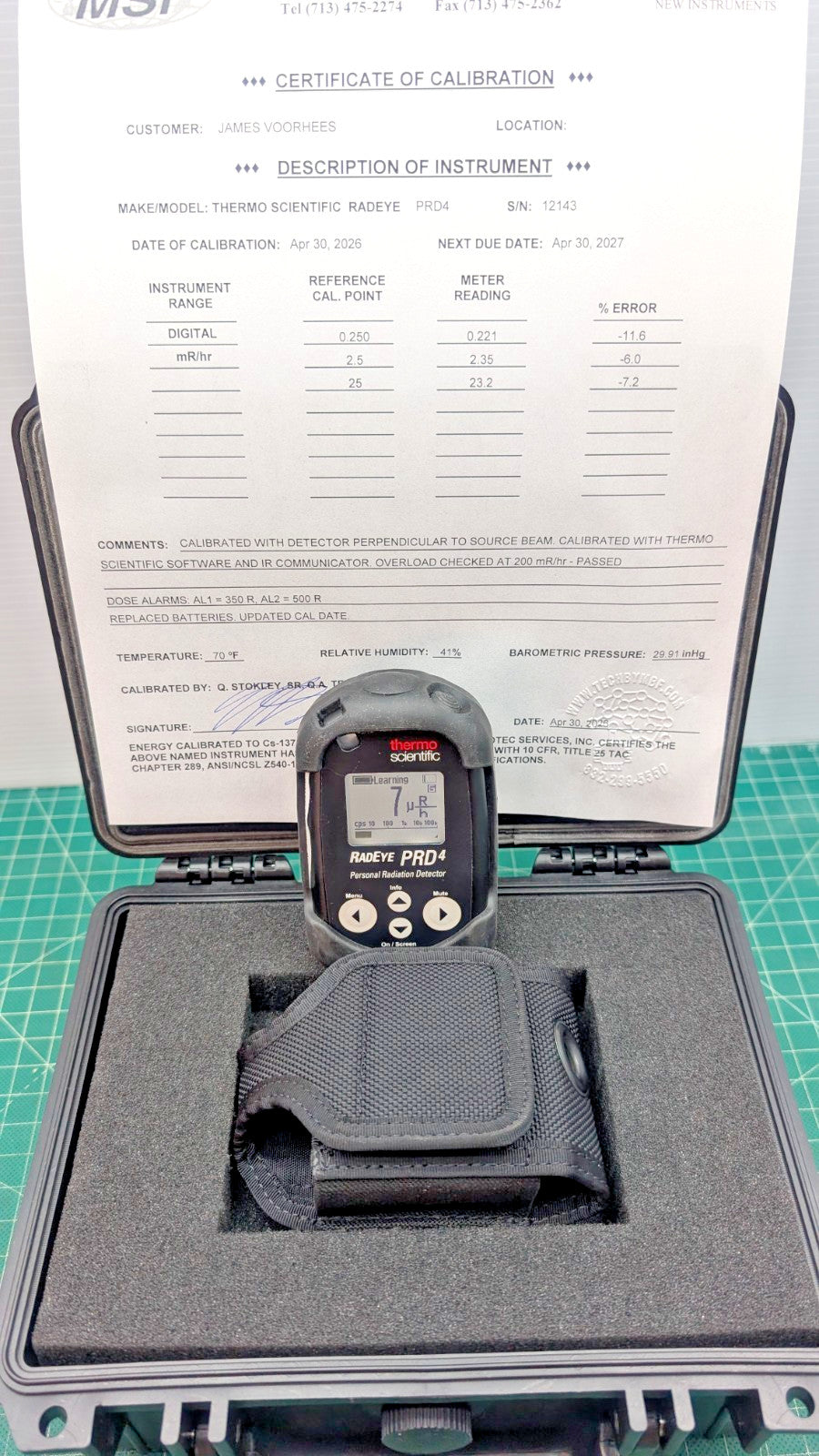

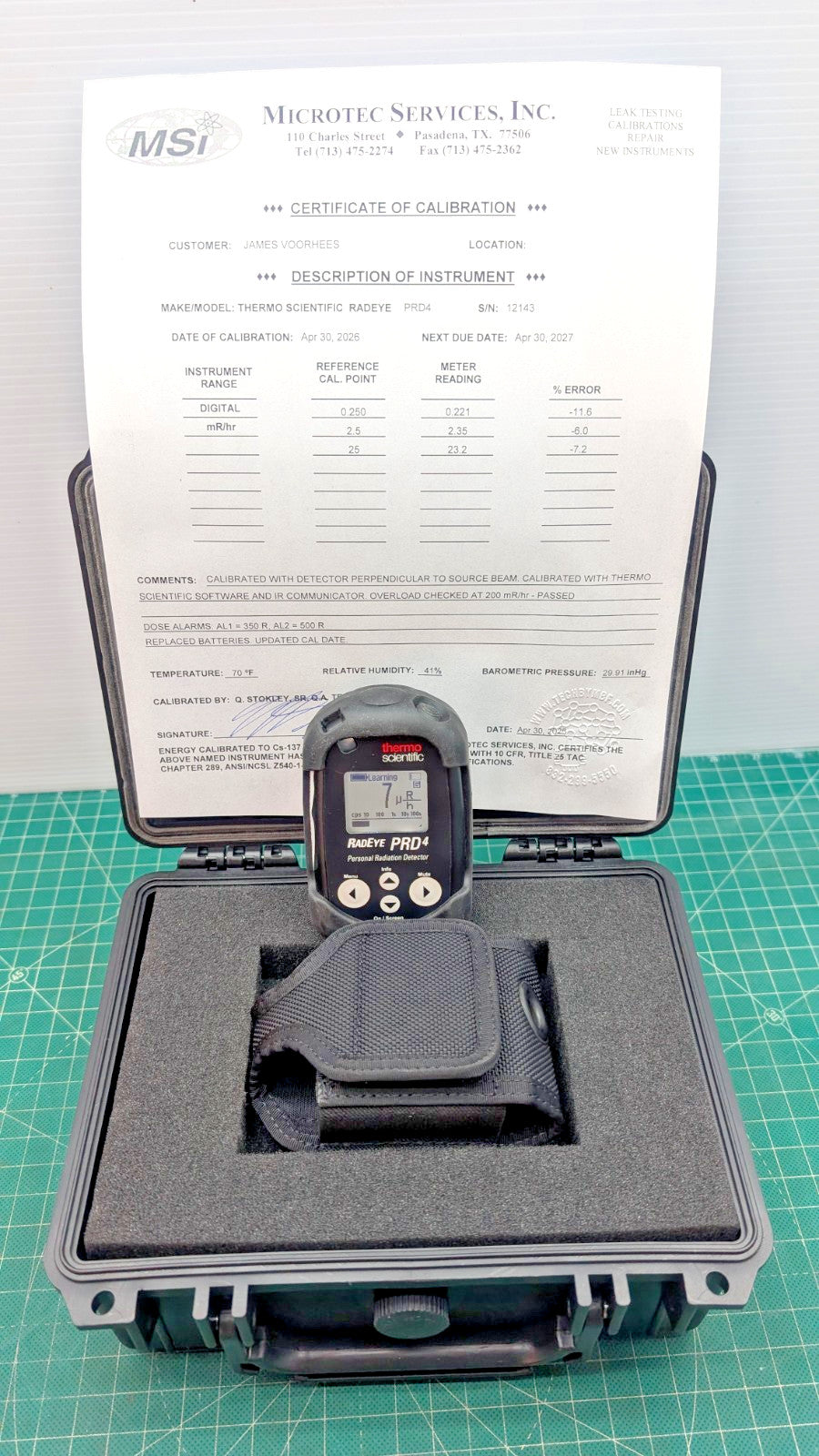

Calibration was performed using standards with current NIST traceability. The calibration certificate is included with the instrument and reflects the current calibration status of this exact unit.
The calibration documentation includes the instrument information, serial number, calibration date, calibration results, and supporting traceability information.
User Configuration Access
The accessible user configuration menus have been checked and are available for normal user setup.
Available settings include display units, alarm thresholds, response behavior, operating modes, and other user accessible options supported by the instrument.
Please ask if you are looking for a specific function and we will be happy to send additional pictures.

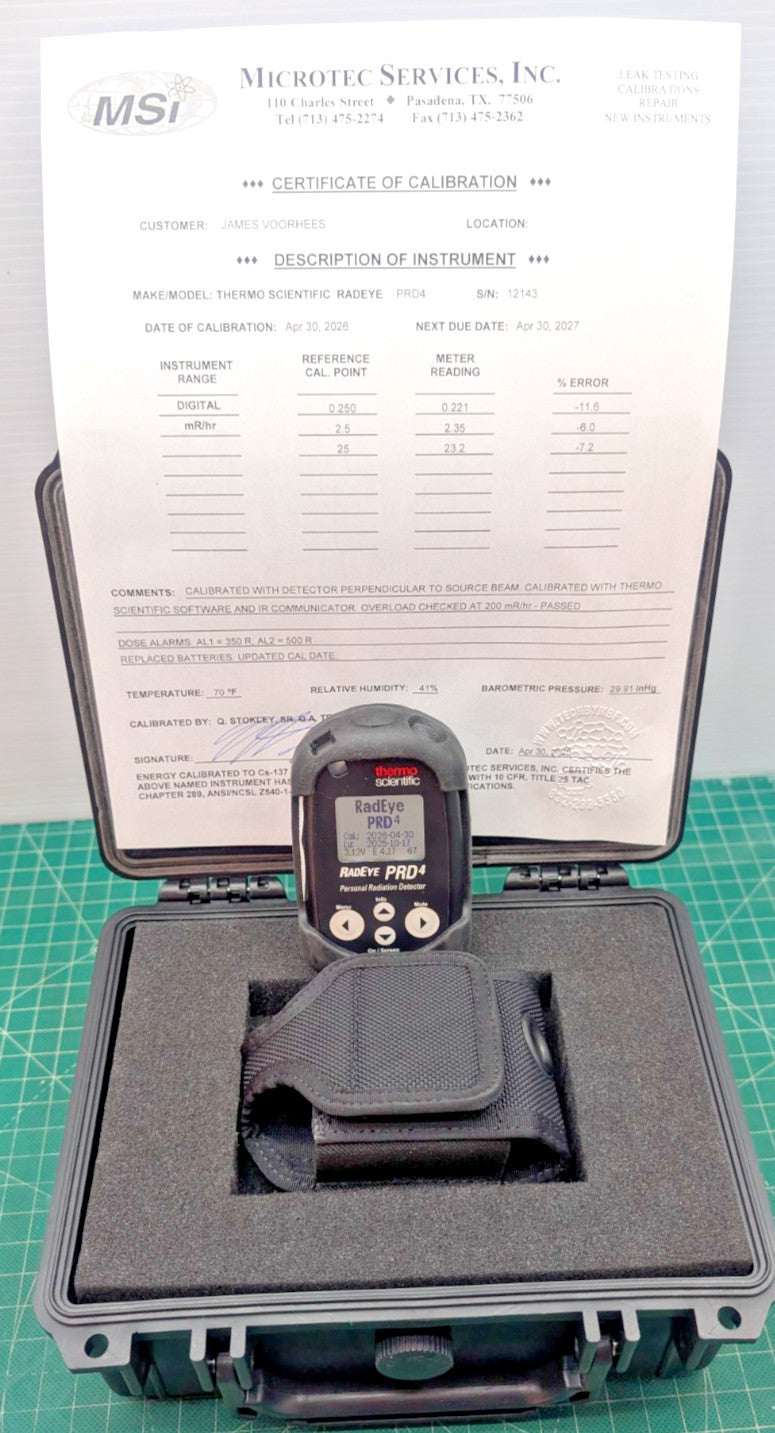

Included
Thermo Scientific RadEye PRD4 Personal Radiation Detector
Current independent third party calibration certificate

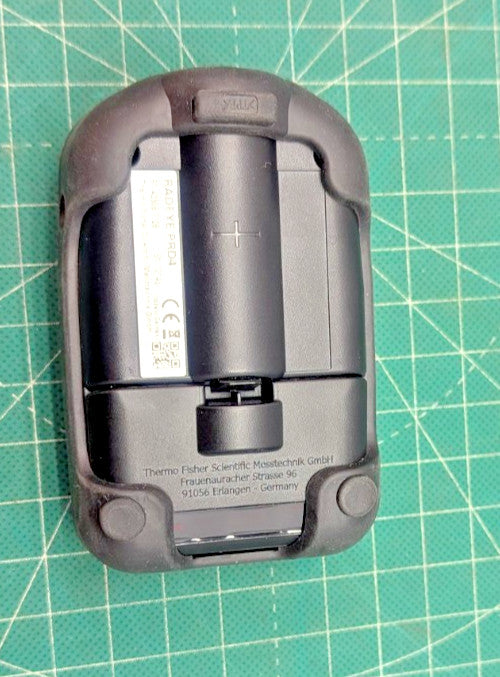

Optional protective rubber bumper guard installed
Nylon belt holster

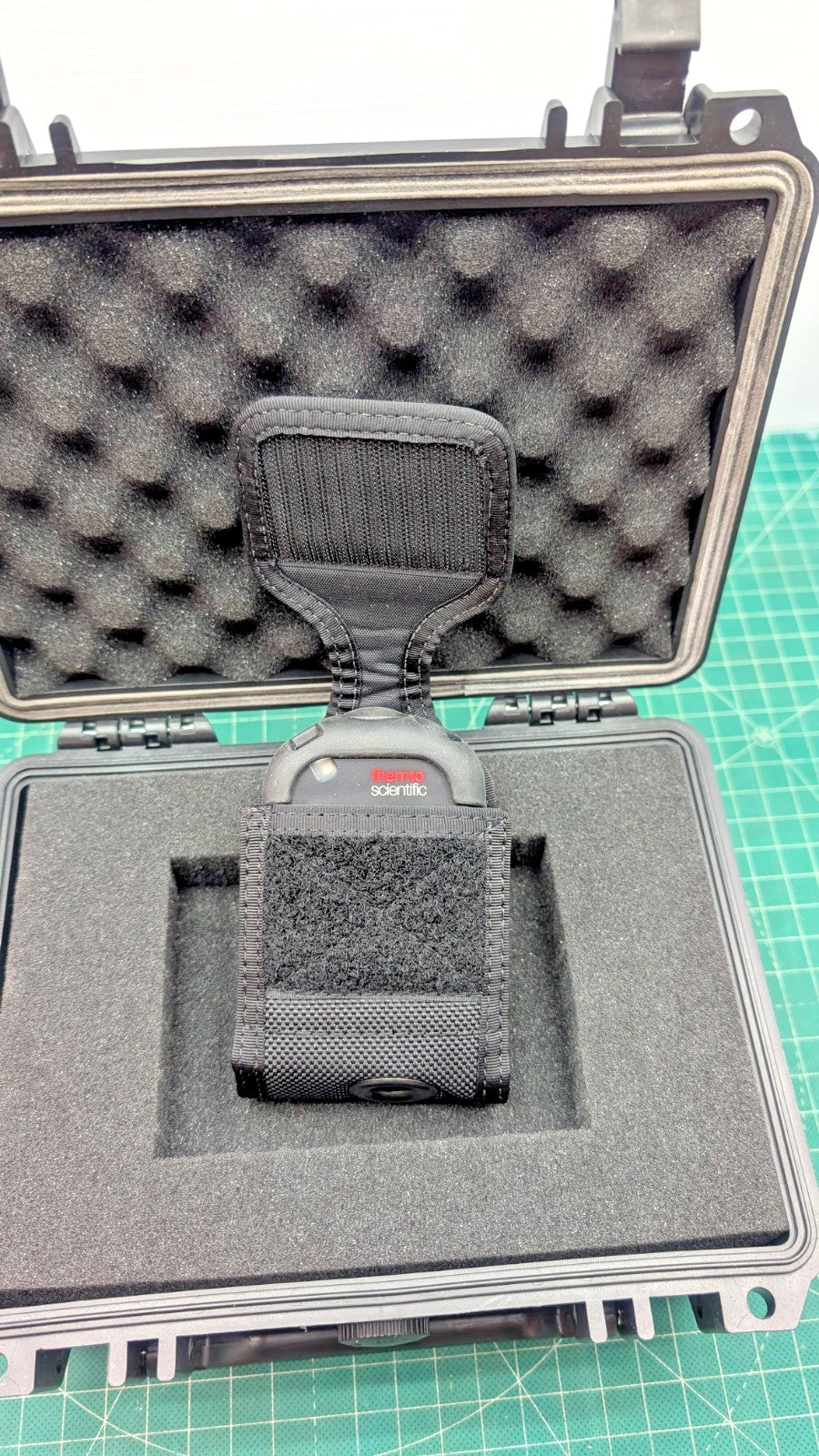

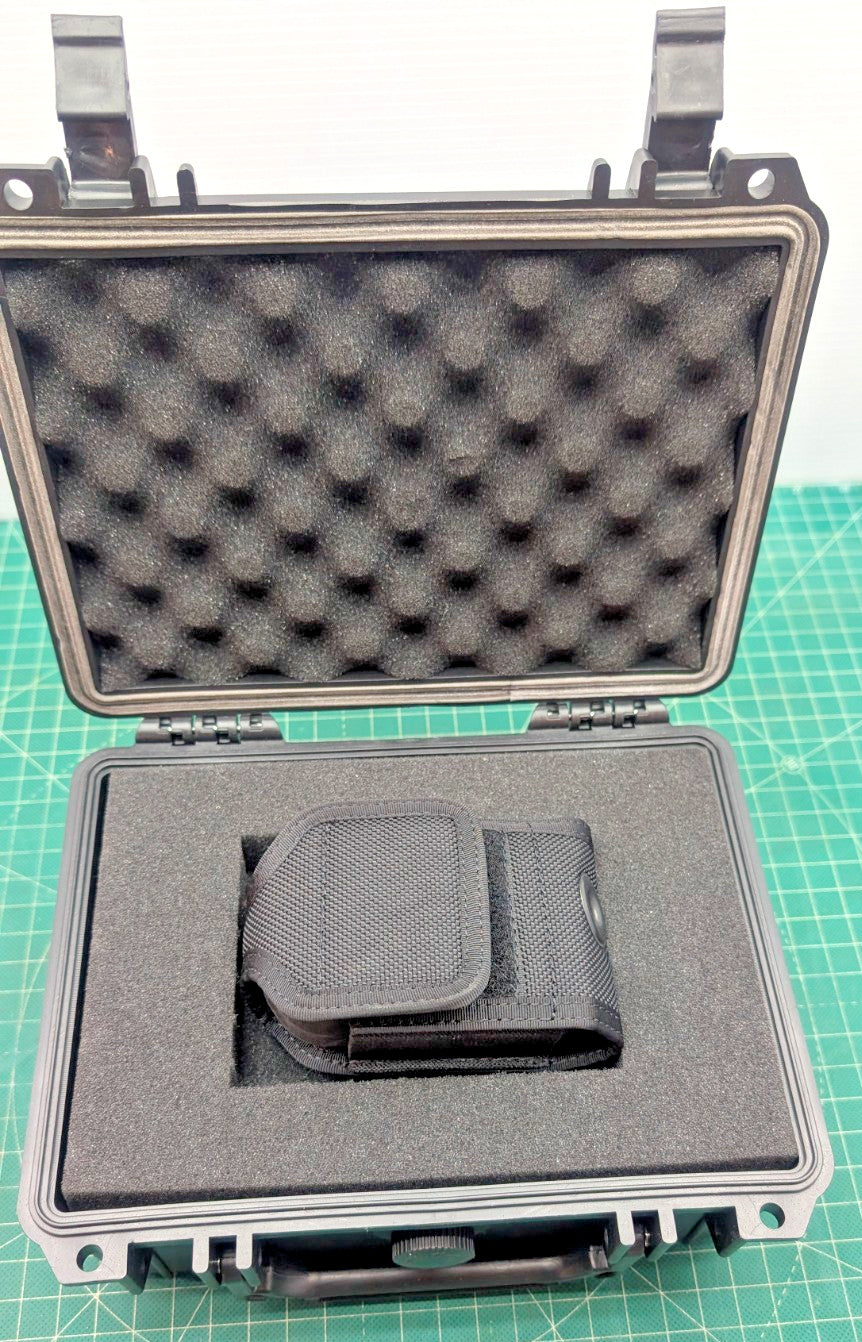

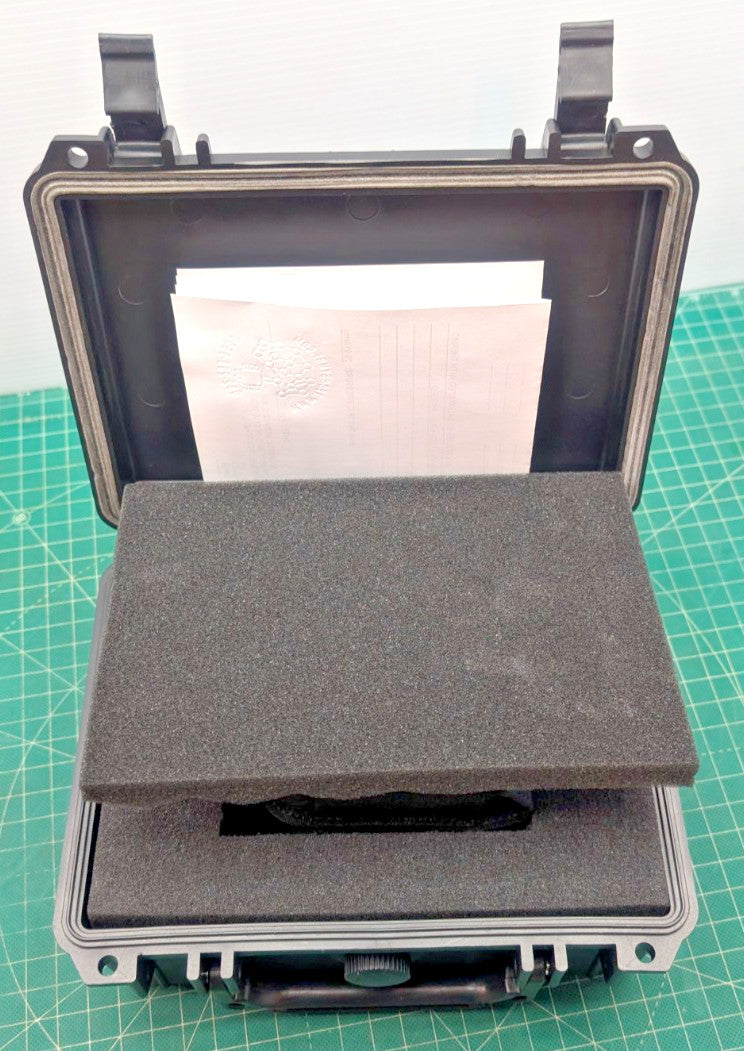

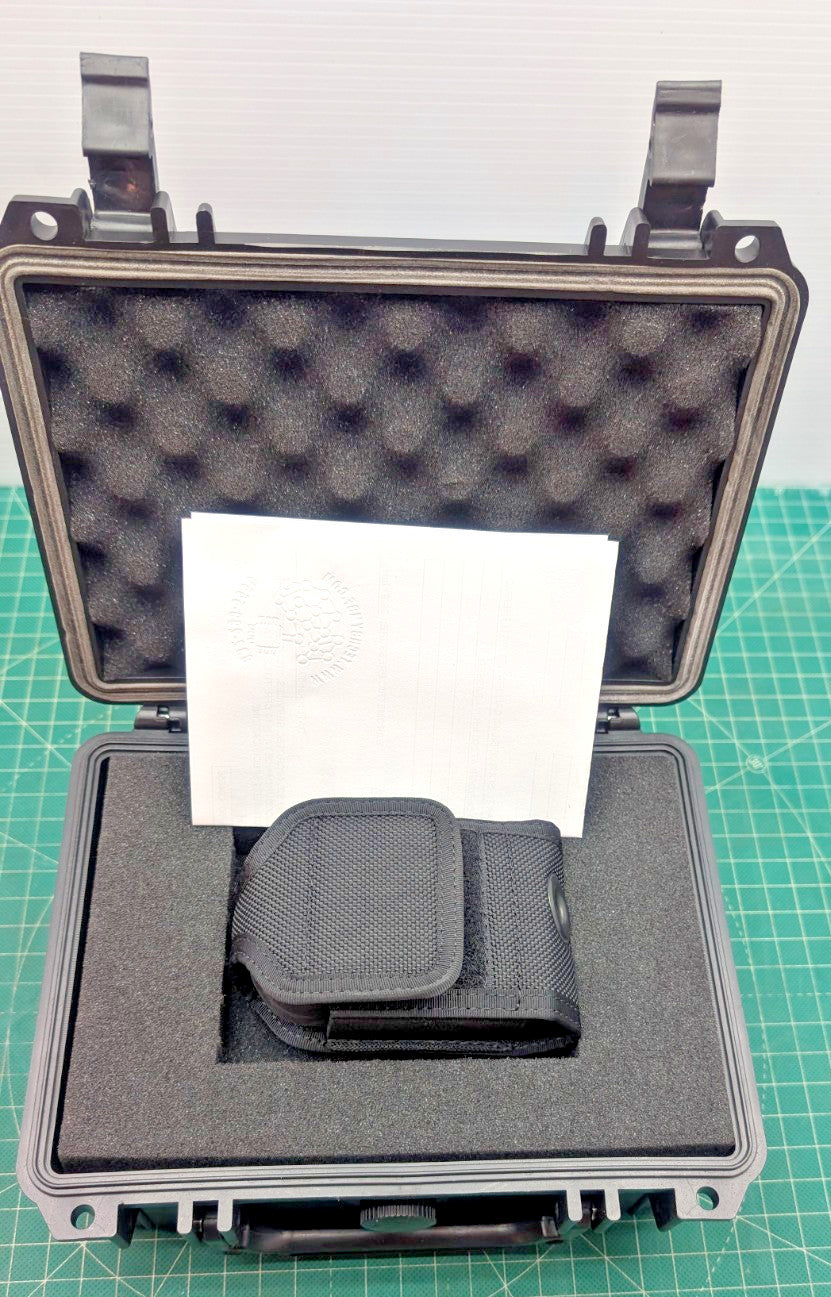

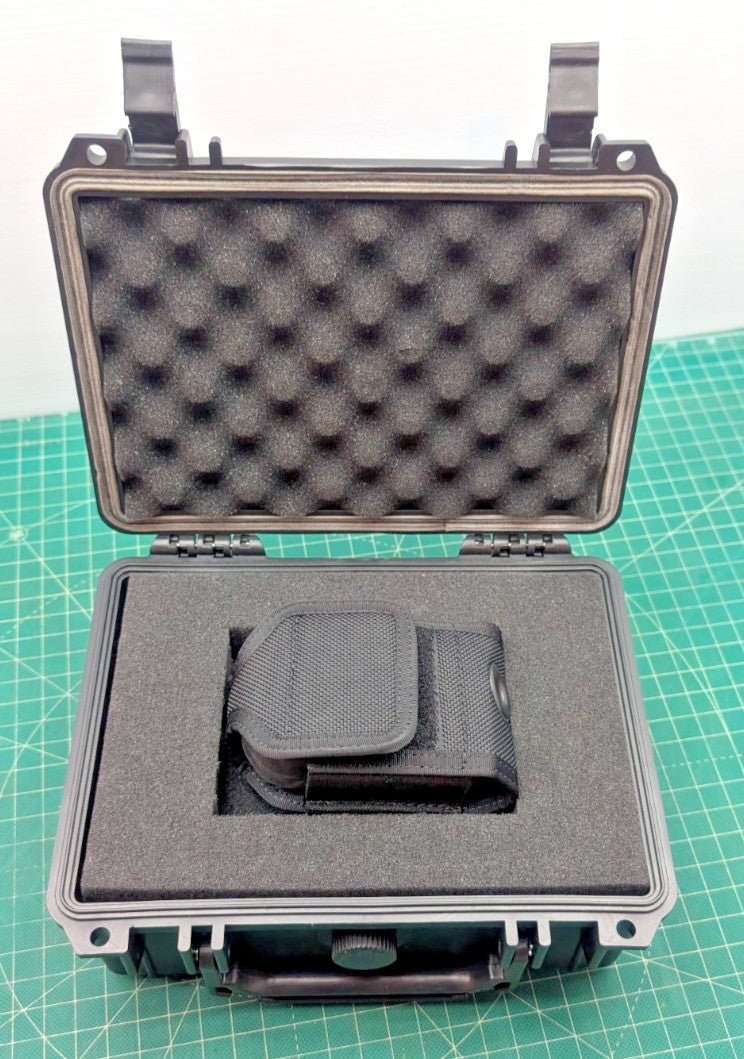

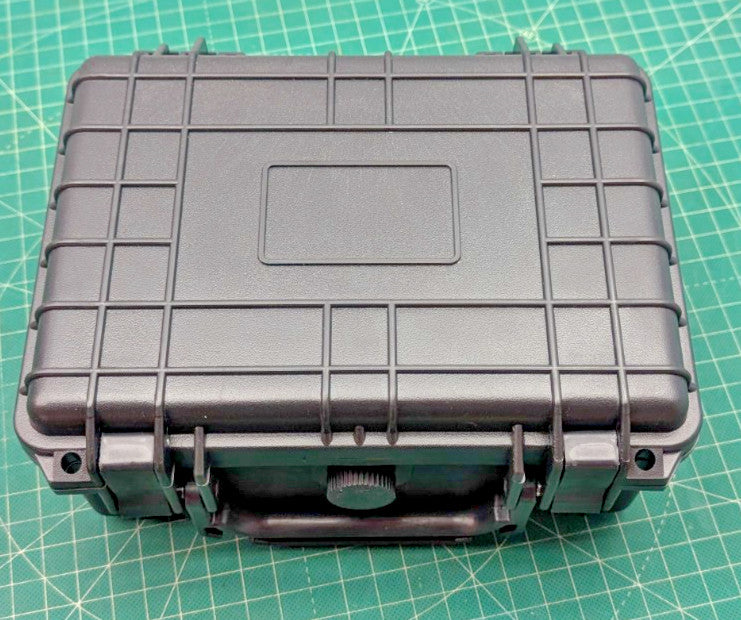

Hard side storage case
Batteries
Technical Information
Model: Thermo Scientific RadEye PRD4
Instrument type: Personal radiation detector
Radiation detected and analyzed: Gamma, X-rays, neutrons, and cosmic dose
Detector type: CsI(Tl) scintillation detector

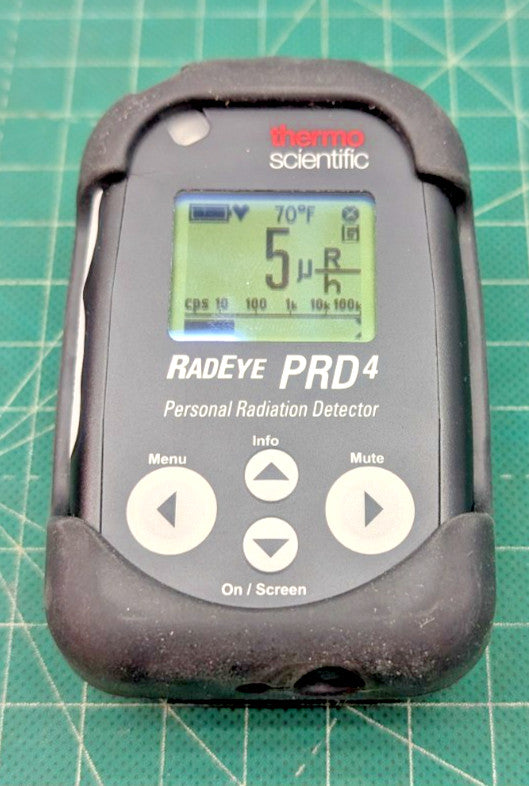

Display units: Currently set in R based units, switchable to Sv based units upon request

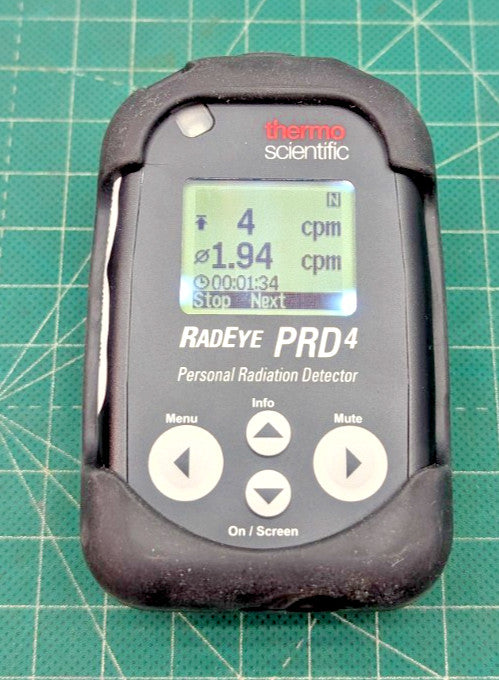

Measured values: Count rate, dose rate, accumulated dose, neutron count rate, and cosmic ray related functions
Gamma/X-ray dose rate range: 10 nSv/h to 250 µSv/h or 1 µR/h to 25 mR/h
Gamma/X-ray count rate energy range: 20 keV to 6 MeV
Gamma/X-ray dose and dose rate energy range: 58 keV to 6 MeV
Cs-137 sensitivity: Approximately 200 cps per µSv/h
Neutron detection and verification: Prompt gamma analysis algorithm

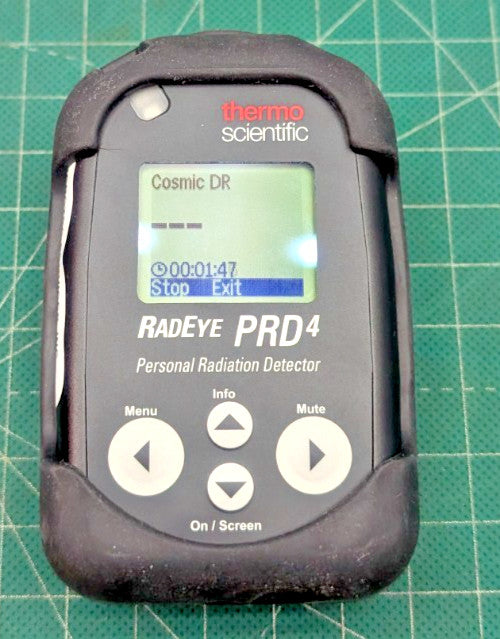

Cosmic ray function: Built-in cosmic ray monitoring function
Natural Background Rejection: Enhanced NBR algorithms
Gain stabilization: Continuous sourceless detector performance algorithm
Alarm notification: Display, LED, sounder, and vibration
Battery type: Two AAA alkaline or rechargeable NiMH batteries
Battery life: Greater than 170 hours with alkaline batteries
Ingress protection: IP65
Drop rating: 1.5 m onto concrete with rubber sleeve installed
Operating temperature: -20 C to +50 C
Approximate weight: 179 g with batteries and rubber sleeve
Approximate dimensions: 4.1 x 2.6 x 1.6 in with rubber protective sleeve
Condition
This unit is used but is in overall great condition.
It may show minor cosmetic wear from prior handling, use, or storage, but it presents very well and has been verified to operate as intended.
The optional protective rubber bumper guard is installed.
The instrument has been inspected, calibrated by an independent third party calibration provider, and verified to operate as intended.
The unit shown in the photos is the exact unit that will be shipped unless otherwise discussed before purchase.
Warranty
This instrument is backed by a 1 year functional guarantee from the date of purchase.
The guarantee covers normal use and operation.
The guarantee does not cover batteries, abuse, misuse, mishandling, physical damage, water damage, contamination, unauthorized repair attempts, or other damage outside normal use.
Configuration
Alarm thresholds can be configured prior to shipment if desired.
Common Uses
Personal radiation awareness
Gamma and X-ray source detection
Neutron indication
Cosmic ray monitoring function
High altitude and aviation radiation awareness
Pilot, aircrew, and frequent flyer radiation interest
Antique and collectible screening
Radium dial and luminous item detection
"Green glass" and ceramic screening
NORM checks
Mineral collecting
Scrap and material screening
General source detection
The built-in cosmic dose function and neutron indication capability may make this unit of interest to pilots, aircrew, frequent flyers, high altitude travelers, and users interested in monitoring changes in radiation background during flight or at elevation.
This instrument is intended for radiation detection and dose rate monitoring. Readings can vary depending on source type, geometry, shielding, energy, calibration condition, and user interpretation.
Radioactive check sources are not included.
Please review all photos and search the model number for full manufacturer specifications.
Item ships the same day payment clears.
If purchasing from outside the 48 states, please contact us before buying to arrange shipping.
