Ludlum Benchtop Rate Meter 440-8 BNC + Data Out + Manuals! Tested + Guarante

Ludlum Model 440-8 Counter / Scaler Interface

Adjustable HV, Gain, Threshold & Window | Tested with Ludlum 500 Pulser | Manual & Power Supply Included

This listing is for 1x Ludlum Micro Benchtop Model 440-8 Counter / Scaler Interface.

This is a very unique and compact Ludlum bench-top counter/scaler unit. These can be linked together into a larger system if desired. They have been tested, documented.

This unit is a small bench-top scaler/counter with front-panel adjustable settings for high voltage, gain, threshold, and window control. It is useful for lab, detector testing, probe setup, counting applications, and integration into custom data systems.

Features

• Ludlum Model 440-8 Counter

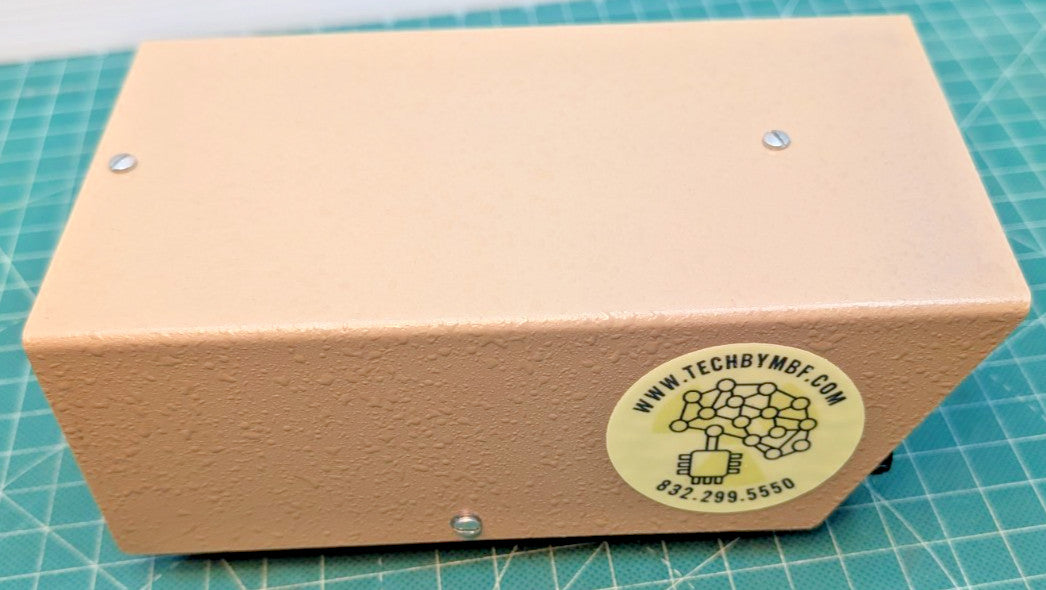

• Compact bench-top style housing

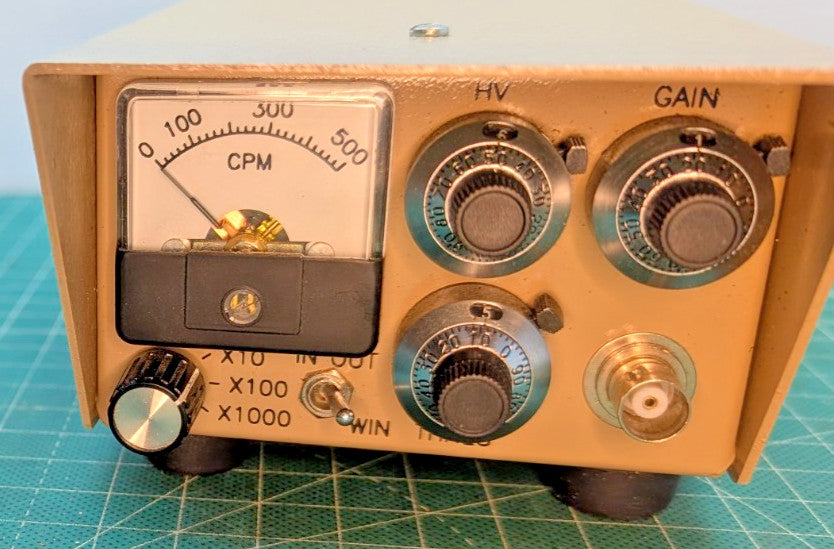

• Analog meter movement, 0 to 500 CPM
• Front multiplier ranges:
  • X10
  • X100
  • X1000
• Approximate usable display range from 200 CPM to 500,000 CPM
• Adjustable high voltage range from approximately 400 V to 2500 V
• Adjustable pulse threshold from approximately 2 mV to 100 mV
• Front-panel GAIN adjustment
• Front-panel THRESH adjustment
• Front-panel HV adjustment
• Front-panel window IN / OUT switch for windowed counting or rejection of signals outside the selected window

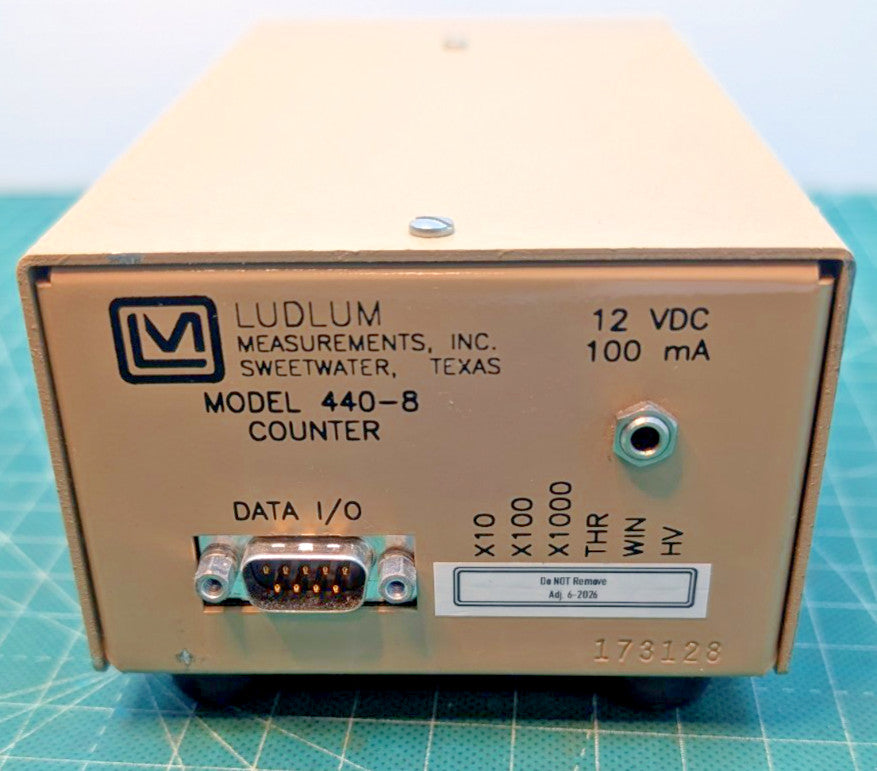

• Rear female DB-9 data/control connector (raw data and NOT serial data)
• Rear power input, marked 12 VDC / 100 mA
• Front BNC detector connector

Testing and Documentation

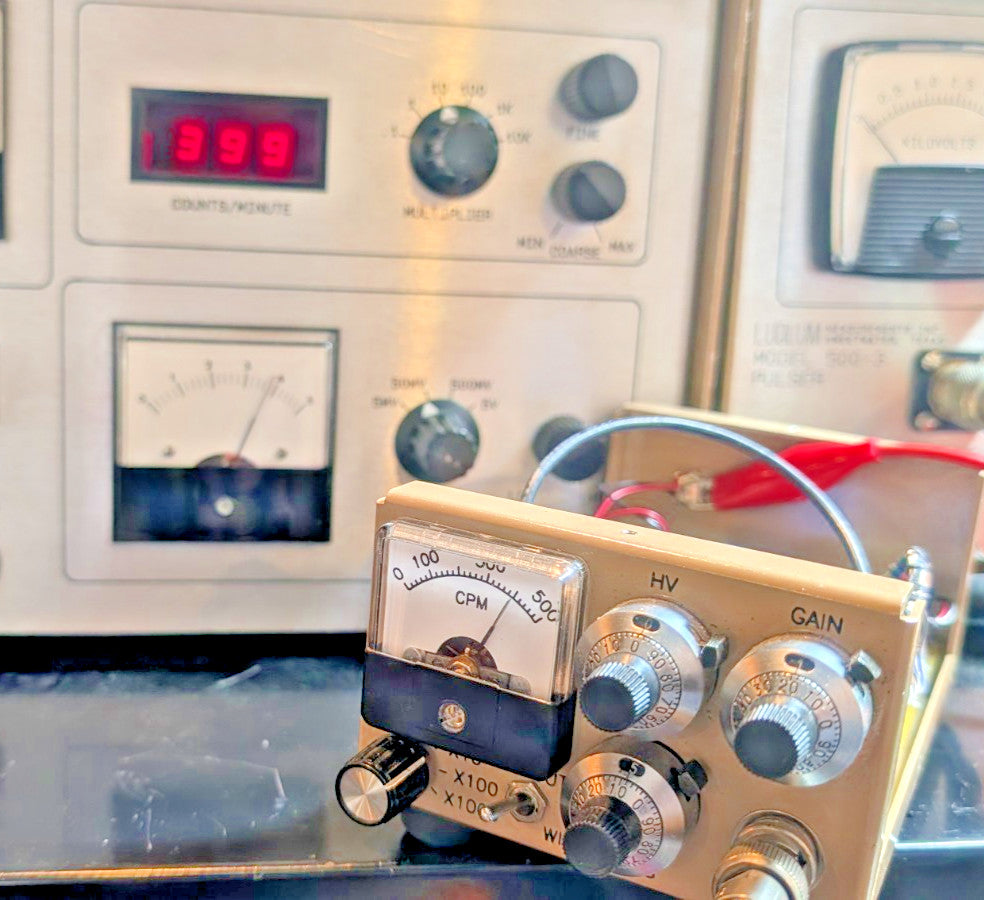

This unit has been tested and adjusted using a factory calibrated Ludlum Model 500 pulser following the procedure outlined in the Ludlum manual.

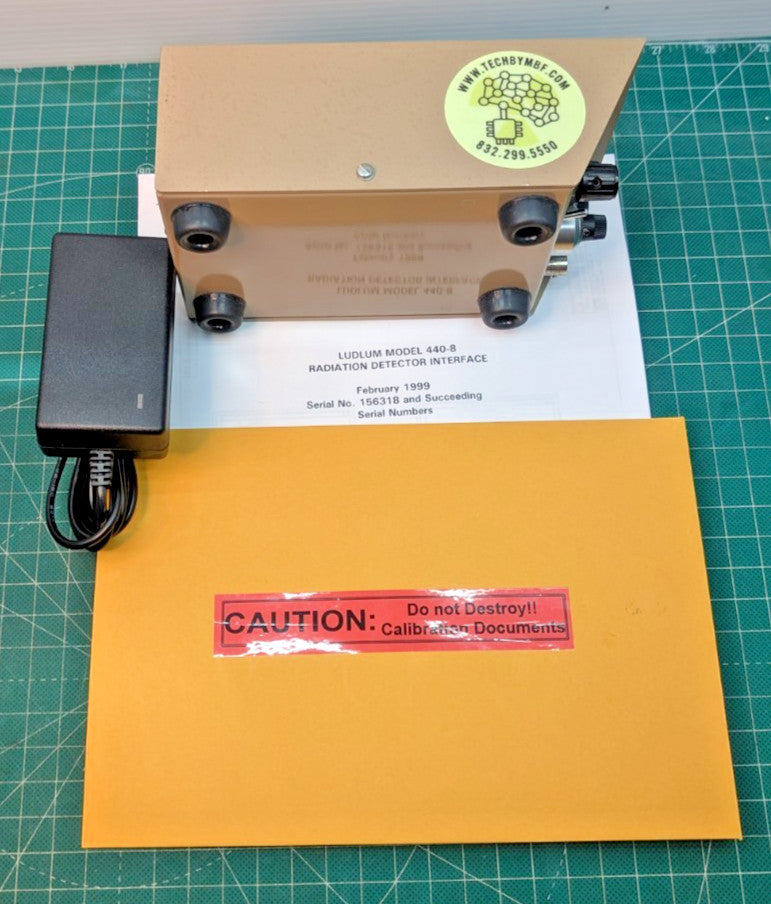

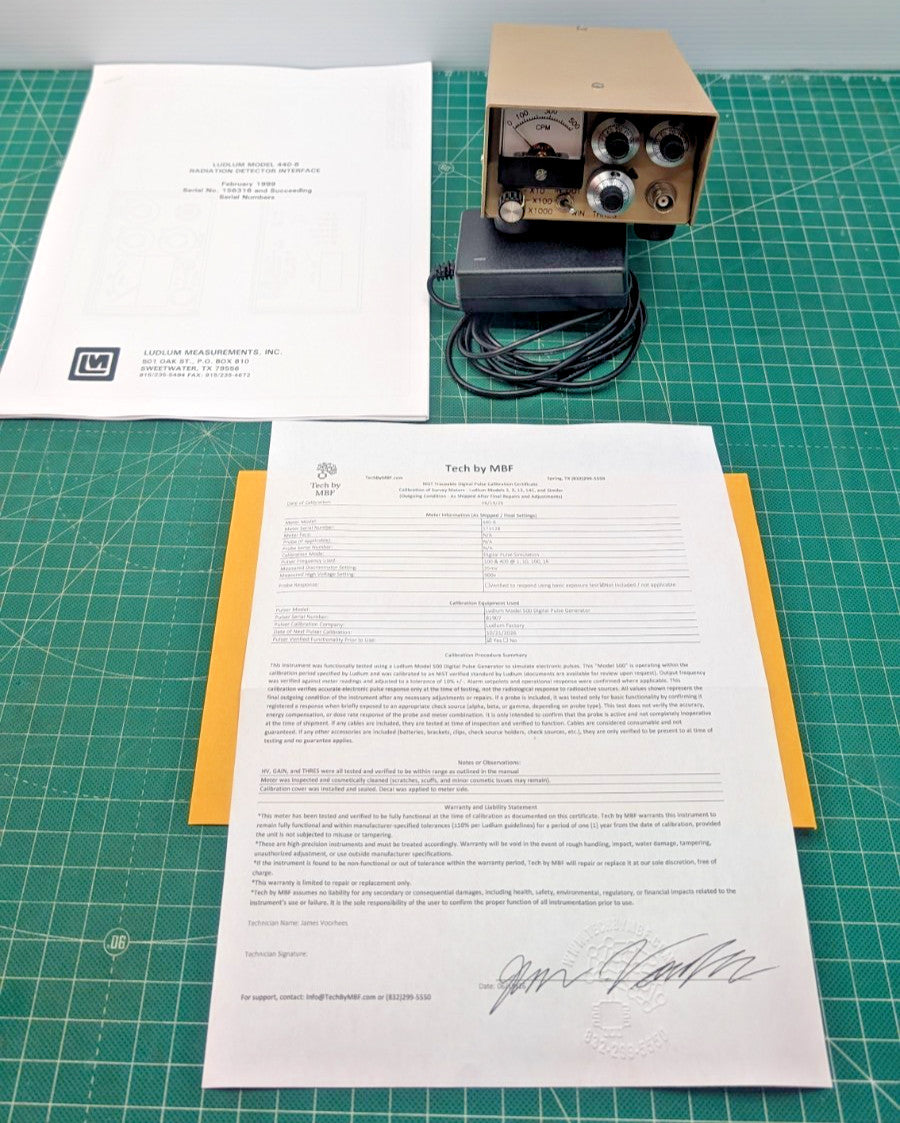

Included with the meter:

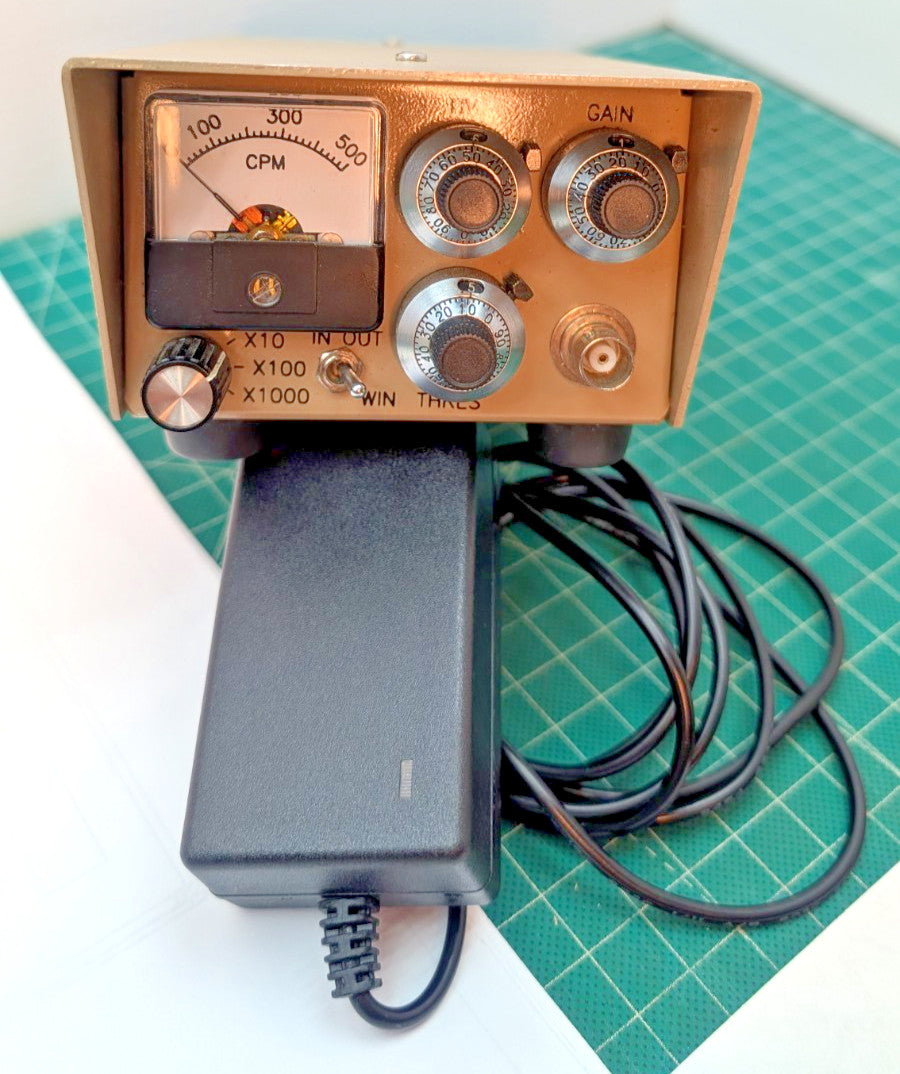

• 12 VDC wall power supply

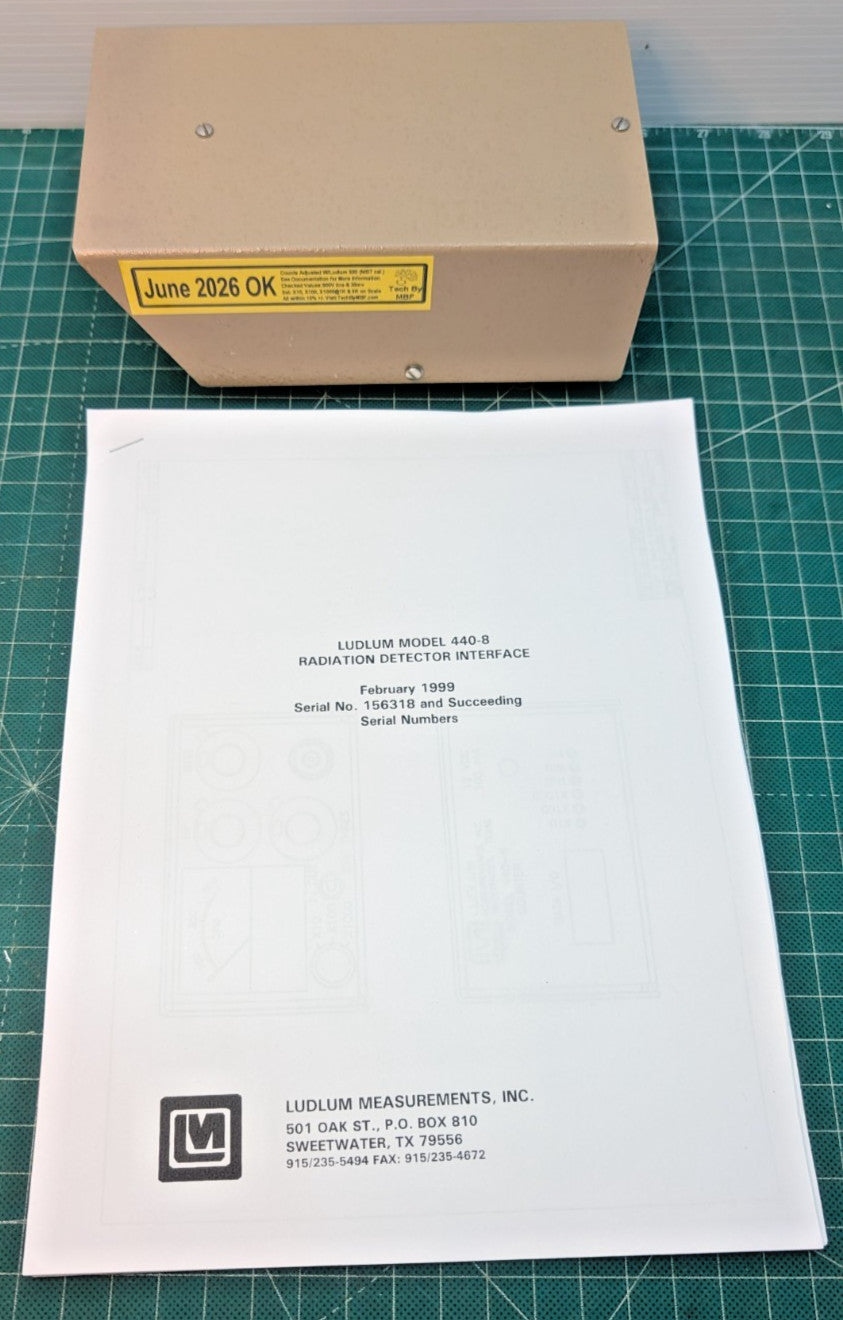

• Copy of the Ludlum Model 440-8 factory manual

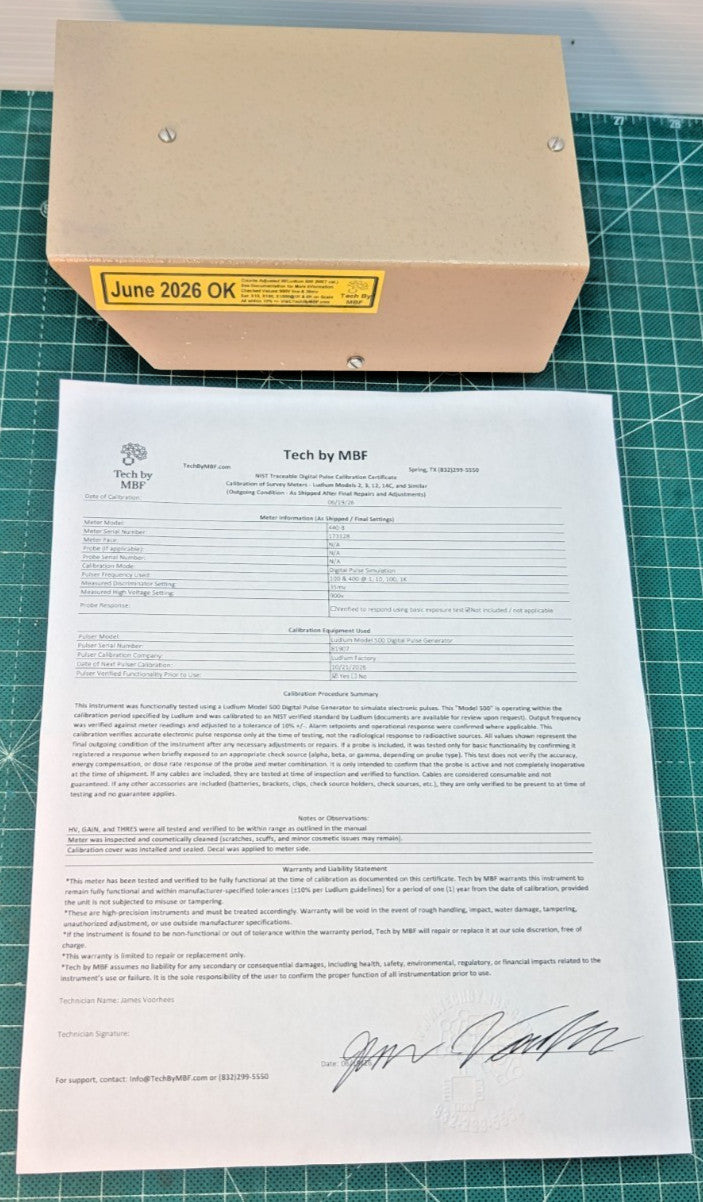

• Tech by MBF test / calibration documentation
• Documentation showing verification against a calibrated Ludlum Model 500 pulser

The Ludlum 500 used for testing has current factory calibration. This is an electronic verification of meter response using a pulser.

Connector Note

This unit currently has a BNC detector connector installed.

The connector can be changed at the time of purchase for an additional charge if a different connector type is needed. Please contact me before purchase for a quote and to confirm additional time required for the connector swap.

Condition

This is a used Ludlum instrument. The pictures are representative of what you will receive. All of the units on offer are in similar condition to this one. Your unit may differ slightly. It may show normal cosmetic wear from previous use, storage, and handling, including scratches, marks, worn paint, or minor labeling residue. Please review the photos closely.

The unit shown has been powered, tested, adjusted, and verified for proper electronic response. All of this will be clearly documented in the pack of information specific to the meter you will receive.

What’s Included

• Ludlum Model 440-8 Counter / Scaler Interface
• 12 VDC power supply
• Copy of factory manual
• Tech by MBF test documentation

Notes

This is a great option for someone needing a compact Ludlum counter with adjustable HV, gain, threshold, and windowing capability for detector testing, lab use, probe evaluation, or custom system integration.
